Here is a simple example of how to read data from the American Community Survey into R.

The Bureau of the Census allows computerized systems to access their data. This is a great convenience for you, but raises a potential security risk for them. To provide them with a reasonable amount of protection, the Bureau requires that you sign up for a free key that you insert in your code. The key allows the Bureau to track requests to insure that you are not a robot trying to scoop up an excessive amount of data. You get a key on this page. Look for “Request a KEY” in the left side menu (see the first screenshot at the bottom of this page).

You can embed this key so that it can be re-used at will. Use the census_api_key function in the tidycensus package.

library(tidycensus)
Warning: package 'tidycensus' was built under R version 4.5.1
library(tidyverse)
Warning: package 'tidyverse' was built under R version 4.5.1
Warning: package 'lubridate' was built under R version 4.5.1
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ ggplot2   3.5.2     ✔ tibble    3.2.1
✔ lubridate 1.9.4     ✔ tidyr     1.3.1
✔ purrr     1.0.4
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(viridis)
Loading required package: viridisLite
key <- Sys.getenv("CENSUS_API_KEY")
census_api_key(key)
To install your API key for use in future sessions, run this function with `install = TRUE`.
tarr <- get_acs(geography = "tract", variables = "B19013_001",
state = "TX", county = "Tarrant", geometry = TRUE)
Getting data from the 2019-2023 5-year ACS
Warning: • You have not set a Census API key. Users without a key are limited to 500
queries per day and may experience performance limitations.
ℹ For best results, get a Census API key at
http://api.census.gov/data/key_signup.html and then supply the key to the
`census_api_key()` function to use it throughout your tidycensus session.
This warning is displayed once per session.
Downloading feature geometry from the Census website.  To cache shapefiles for use in future sessions, set `options(tigris_use_cache = TRUE)`.

  |
  |                                                                      |   0%
  |
  |=                                                                     |   1%
  |
  |=                                                                     |   2%
  |
  |==                                                                    |   2%
  |
  |==                                                                    |   3%
  |
  |===                                                                   |   5%
  |
  |====                                                                  |   5%
  |
  |====                                                                  |   6%
  |
  |=====                                                                 |   7%
  |
  |=====                                                                 |   8%
  |
  |======                                                                |   8%
  |
  |======                                                                |   9%
  |
  |=======                                                               |  10%
  |
  |========                                                              |  11%
  |
  |==========                                                            |  14%
  |
  |==========                                                            |  15%
  |
  |===========                                                           |  16%
  |
  |============                                                          |  17%
  |
  |=============                                                         |  18%
  |
  |==============                                                        |  19%
  |
  |===============                                                       |  22%
  |
  |================                                                      |  23%
  |
  |==================                                                    |  25%
  |
  |===================                                                   |  27%
  |
  |=====================                                                 |  31%
  |
  |======================                                                |  32%
  |
  |=======================                                               |  33%
  |
  |========================                                              |  35%
  |
  |=========================                                             |  35%
  |
  |==========================                                            |  37%
  |
  |===========================                                           |  38%
  |
  |============================                                          |  39%
  |
  |==============================                                        |  42%
  |
  |=================================                                     |  46%
  |
  |=================================                                     |  48%
  |
  |===================================                                   |  49%
  |
  |=====================================                                 |  52%
  |
  |=======================================                               |  56%
  |
  |========================================                              |  57%
  |
  |=========================================                             |  59%
  |
  |============================================                          |  63%
  |
  |===============================================                       |  67%
  |
  |==================================================                    |  71%
  |
  |===================================================                   |  72%
  |
  |====================================================                  |  74%
  |
  |======================================================                |  77%
  |
  |=======================================================               |  79%
  |
  |==========================================================            |  83%
  |
  |============================================================          |  86%
  |
  |=============================================================         |  87%
  |
  |==============================================================        |  89%
  |
  |================================================================      |  91%
  |
  |===================================================================   |  95%
  |
  |===================================================================   |  96%
  |
  |===================================================================== |  98%
  |
  |======================================================================| 100%

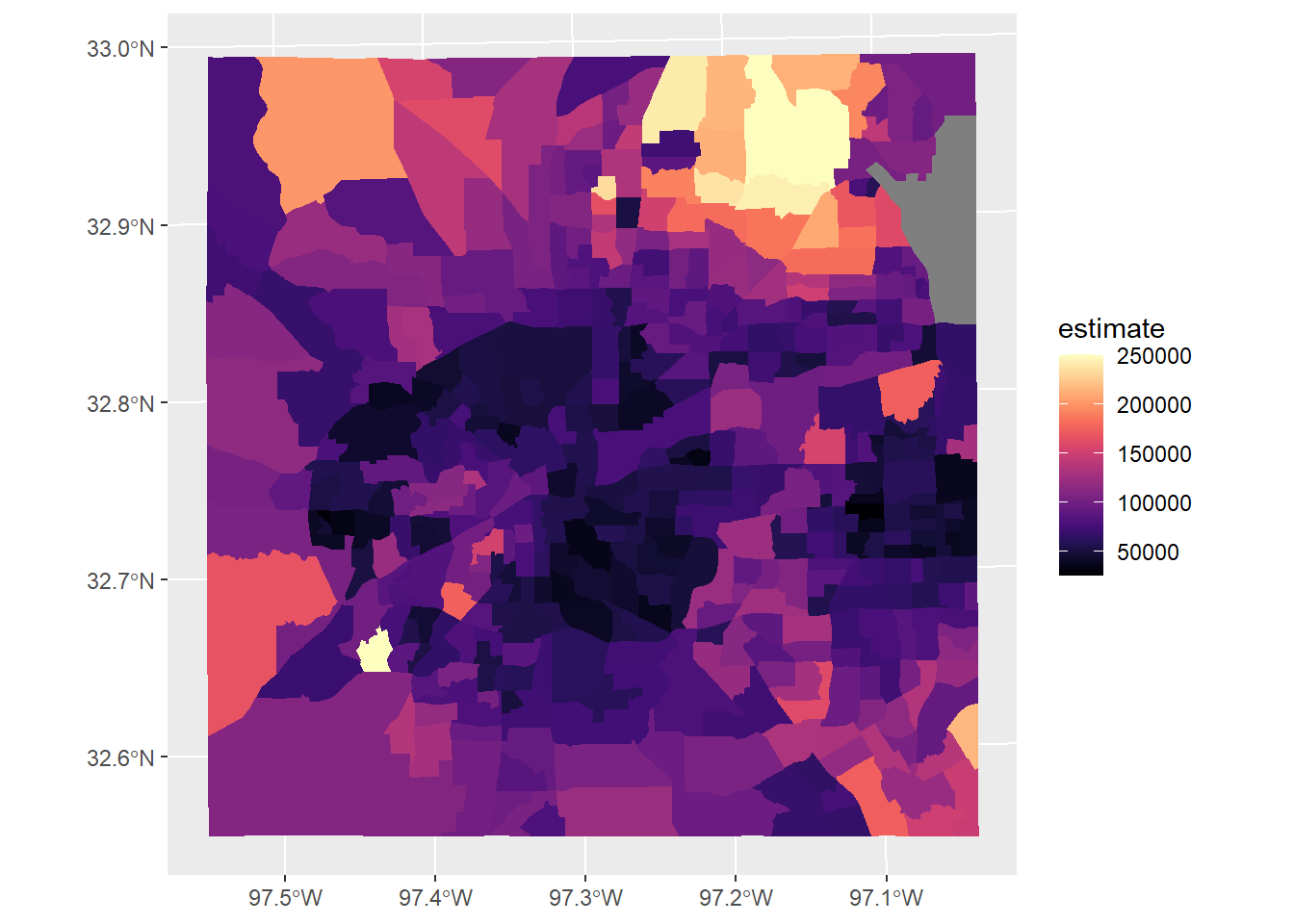

ggplot(tarr, aes(fill = estimate, color = estimate)) +
geom_sf() +
coord_sf(crs = 26914) +
scale_fill_viridis(option = "magma") +
scale_color_viridis(option = "magma")

Resources

Ari Lamstein, Logan Powell. A Guide to Working with US Census Data in R. Available in mhtml format and at their [github site].

U.S. Census Bureau, Geography and the American Community Survey: What Data Users Need to Know. Available in pdf format.

Screenshots

Request an API key
