StATS: What is a standard deviation? (October 11, 2002)

The standard deviation is a measure of how spread out your data are. Computation of the standard deviation is a bit tedious. The steps are:

  1. Compute the mean for the data set.

  2. Compute the deviation by subtracting the mean from each value.

  3. Square each individual deviation.

  4. Add up the squared deviations.

  5. Divide by one less than the sample size.

  6. Take the square root.

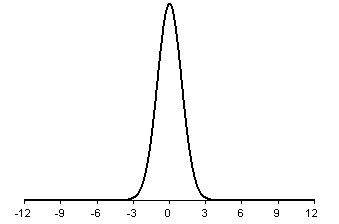

Suppose your data follows the classic bell shaped curve pattern. One conceptual way to think about the standard deviation is that it is a measures of how spread out the bell is. Shown below is a bell shaped curve with a standard deviation of 1. Notice how tightly concentrated the distribution is.

Shown below is a different bell shaped curve, one with a standard deviation of 2. Notice that the curve is wider, which implies that the data are less concentrated and more spread out.

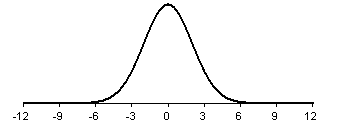

Finally, a bell shaped curve with a standard deviation of 3 appears below. This curve shows the most spread.

Example

Let's examine a standard deviation computation for data on PI max values in a sample of children with cystic fibrosis. The seven values in this data set are 73, 58, 67, 93, 33, 18, and 147. The mean for this data set is 69.9.

(73-69.9)2 = (3.1)2 = 9.61
(58-69.9)2 = (-11.9)2 = 141.61
(67-69.9)2 = (-2.9)2 = 8.41
(93-69.9)2 = (23.1)2 = 533.61
(33-69.9)2 = (-36.9)2 = 1361.61
(18-69.9)2 = (-51.9)2 = 2693.61
(147-69.9)2 = (77.1)2 = 5944.41

For each data value, compute the squared deviation by subtracting the mean and then squaring the result. The sum of these squared deviations is 10,692.87. Divide by 6 to get 1782.15. Take the square root of this value to get the standard deviation, 42.2.

Interpreting the standard deviation

For reasonably symmetric and bell shaped data sets:

Using SPSS

Select ANALYZE | DESCRIPTIVE STATISTICS | DESCRIPTIVES from the menu to get computation of the standard deviation.

This table shows that the standard deviation is 42.2.

Population standard deviation. The population standard deviation (often represented by the Greek letter sigma) is measures the variability of data in a population. It is usually an unknown constant. The formula is:


Sample standard deviation. The sample standard deviation (usually represented by S) measures the variability of data in a sample. It is easy to compute (compared to a population standard deviation) because it is based on a small and manageable sample. The formula is:
